Case done by Dr. Joseph Mongalo and myself. Patient is a 38 year old hispanic female suffering early loss of dentition.

Chief complaint: “I hate to wear a partial, It makes me feel like an old lady”

Patient desires a solution that is both fixed and aesthetic.

Intraoral clinical presentation

Pre-op radiographs.

Large cases need to be treatment planned using CT-scan images

Clinical evaluation: Adequate ridge width, healthy gingival tissue.

This condition is not uncommon in patients under 40 years of age.

Initial model evaluation, marking of 7mm rules.

Normal class I profile.

Model base surgical guide will be fabricated.

Inexpensive transparent acrylic guide fabricated to reduce costs.

Placement of 7 Conus implants.

Implants torque at 45 Newtons.

Temporary screw retained cylinder.

One implant had fenestration, was grafted and buried.

Anterior immediate temporary made out of acrylic wit resin teeth.

Posterior immediate temp.

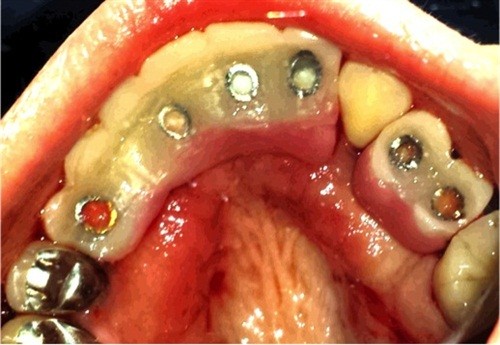

Ideal lingual implant positioning.

Scalloped gingival recreated on the temporary bridge.

Vertical dimension and centric relation restored.

Having patient walk out with a fixed bridge has a great positive impact on their lives.

Post-op radiograph.

4 months post-op, note excellent tissue.

Canine was left to maintain vertical dimension.

Autramatic extraction.

Bone graft: socket preservation.

2 weeks post-extraction, 7th implant exposed.

Excellent tissue.

Multi-unit abutments placed for screw retained bridge.

Lingual implant positioning.

Final abutment impression.

2 master casts to verify passive fit.

Prettau Zirconium bridge, absolutely beautiful material.

Prettau has pressed zirconia structure.

Lingual implant positioning is crucial in clinical success.

Patient desired white teeth on the top.

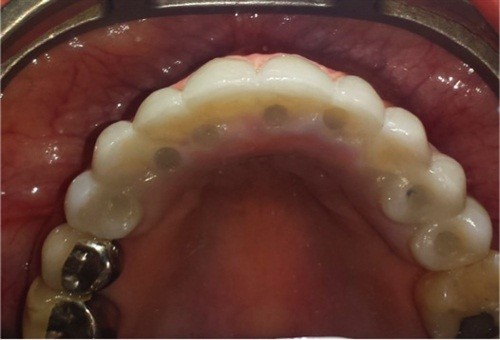

Final aesthetic outcome.

Access holes sealed with fermit.

Beautiful aesthetic profile.

Passive aperture exposing centrals in necessary for aesthetic outcome.

Satisfied patient.

Introduction:
Oral implantology is an ever-evolving science seeking solutions to clinical challenges. A common challenge is treating atrophic maxillary ridge with deficiency in vertical height. In 1974 Dr Hilt Tatum performed the first sinus lift in the world, this lateral window approach has proven to be effective technique but is invasive in nature and requires great surgical experience.

The pursuit of less invasive methods led to the introduction in 1994 to a new technique using a crestal approach by Summer where osteotomes were used to “push” the floor of the sinus. In the past 20 years many variations of Summer’s technique have proven to be effective in sinus elevation.

This is the 1st of a series of four clinical presentations where we will explore the following approaches:
A. Hammerless intra-crestal
B. Hydraulic intra-crestal
C. Conventional lateral window
D. Lateral “punch” window

Hammerless intra-crestal lifts are those performed through the alveolar crest in a vertical direction as opposed to lateral windows. The inclusion criteria for crestal lift are: sinuses free of infection process, minimum of 3.5mm residual alveolar bone height from alveolar crest to the floor of the sinus and minimum alveolar width of 7mm.

Clinical case: X-ray reveals pneumatized sinus with 3.7mm of residual bone, full mucoperiosteal flap shows adequate bone width greater than 7mm (fig 1-2).

The hammerless kit used consists of 3 safe sinus drills, stoppers ranging from 2mm to 12mm, bone condenser, bone carrier and sinus probe (Blue Sky Bio, USA), the technique is to take a digital periapical and measure the height of bone and drill 1mm short of the floor of the sinus floor using 50 RPM and drill stoppers. Increase the length by changing stoppers until the floor has been pushed (fig 3-5).

There are 3 possible ways to verify that the floor has been pushed and that you are in contact with the sinus membrane:
1…Patient will feel slight pain at the moment the floor is broken because innervations to the maxillary antrum comes from V1 (ophthalmic branch of the trigeminal)
2…Doctor will feel a “drop” when the floor is pushed
3…Using a round sinus probe the clinician will feel “soft-squishy” material and not hard bone.

Once it is confirmed that the floor is pushed or broken, start adding bone with an amalgam carrier until the site is filled. Condense this bone with light apical pressure and repeat this procedure 3-5 times until you are able to observe a well-defined “bone dome” (fig 6-7).

Select an implant that is self-treating, 1mm wider than your final drill to compress the walls and double the length of the stopper that broke the floor. In this case the last stopper was at 5mm so we selected a 4.5 * 10mm fixture (fig 8-10).
Conclusion:
Following these steps the hammerless intra-crestal lift becomes a safe and predictable surgical procedure that your patients will benefit from and that general dentists can master in short amount of time.

To learn this are other “cool” surgical techniques, come and join us in at the west coast of Mexico at Live Implant Training where you will perform this surgeries under direct supervision of board certified oral and maxillofacial surgeons. For more information contact Dr Mongalo at Liveimplants.com or 786-249-4510.

Questions? Feel free to ask us for more information
